Piston Air Motors | Radial Piston Power

TONSON's patented high precision distinctive radial piston design delivers high torque without high levels of air consumption and air loss as compared to typical vane type air motors.

All TONSON Piston Air Motors are reversible.

OEM, custom design models are accepted.

FEATURES
Explosion-proof	Stalling Safety	Rugged Design
Positive Start	High Start Torque	High Torque output
Instanlty Reversible	Stepless Speed Control	Low Air Consumption

Easy Maintenance

Mounting Flexibility: Flange / Foot / IEC / NEMA / Custom Mounting available

Modular Design: All motors may be equipped with gear reducer, brake, hand, remote, remote pendant control as options.

Dual-shaft model available.

Intrinsically safe in hazardous environment (ex. mines, petrochemical, volatile atmosphere

Air Motors can easily operate under conditions which are unfavorable
for
electric, hydraulic, stepper and servo motors.

Air Motors are designed to operate by compressed air and to be used with filter, regulator and lubricator to improve performance and provide longer life.
*Users should be responsible for determining suitability of the product for intended use and assuming all risk and liability whatsoever in connection therewith.
**For product liability and safety reasons, any modifications to the product(s) or its accessories must be agreed upon by the technical authority of the manufacturer.

APPLICATIONS
Hoist / Winches	Lifting Devices	Mixing Equipment
Pump Drives	Choppers / Grinders	Mining Equipment

SPECIFICATIONS

Model Code				Gear Ratio	Performance at Maximum Speed							Maximum Torque
Series		Type			Power		Torque		Speed	Air Consumption		Speed	Torque
Series		Type			HP	kW	N·m	lb·in	RPM	l/min	CFM	RPM	N·m	lb·in
Standard Options Parts & Service	M1 (010)	*	Standard	1:1	0.10	0.07	0.637	5.64	1100	200	7	220	1.12	9.9
		*G5	with reducer	5:1			2.84	25.1	220			44	4.99	44.2
		*G10		10:1			5.69	50.4	110			22	10	88.5
		*G15		15:1			8.53	75.5	73.3			14.7	15	133
		*G20		20:1			11.5	102	55			11	20.2	179
		*G30		30:1			16.4	145	36.7			7.3	28.9	256
Foot Options Parts & Service	M2	*	Standard	1:1	0.16	0.12	0.84	7.43	1000	211	7	200	1.5	13.3
		*G5	with reducer	5:1	0.12	0.09	3.61	32.0	200			40	6.4	56.6
		*G10		10:1			7.22	63.9	100			20	12.7	112
		*G15		15:1			10.8	95.9	66.7			13.3	19.1	169
		*G20		20:1			14.4	128	50			10	25.4	225
		*G30		30:1			21.7	192	33.3			6.7	38.1	337
Flange Options Parts & Service	M3 (015)	*	Standard	1:1	0.25	0.19	1.37	12.1	900	260	9	180	2.51	22.2
		*B	with brake	1:1			1.37	12.1	900			180	2.51	22.2
		**G5	with reducer	5:1			5.88	52.0	180			36	10.8	95.6
		**G10		10:1			11.8	104	90			18	21.6	191
		**G15		15:1			17.7	157	60			12	32.4	287
		**G20		20:1			23.5	208	45			9	42.8	379
		**G30		30:1			35.3	312	30			6	64.2	568
		**G40		40:1			47.1	417	22.5			4.5	85.7	759
		**G50	with brake and reducer	50:1			58.8	520	18			3.6	107	947
		**G60		60:1			70.6	625	15			3	129	1137
		**G80		80:1			93.2	825	11.2			2.2	170	1501
		**G100		100:1			118	1044	9			1.8	214	1891
		**G120		120:1			137	1213	7.5			1.5	248	2195
		**G160		160:1			176	1558	5.6			1.1	319	2820
		**G200		200:1			233	2062	4.5			0.9	422	3732
Metric Options Parts & Service	M4	*	Standard	1:1	0.33	0.25	2.16	19.1	850	267	9	170	3.95	35.0
		*B	with brake	1:1	0.33	0.25	2.16	19.1	850			170	3.95	35.0
		**G5	with reducer	5:1	0.22	0.17	9.29	82.2	170			34	17.0	150
		**G10	with reducer	10:1			18.6	164	85			17	34.0	301
		**G15	with brake and reducer	15:1			27.9	247	56.7			11.3	51.0	451
		**G20		20:1			37.2	329	42.5			8.5	67.9	601
		**G30		30:1			55.7	493	28.3			5.7	102	902
Imperial Options Parts & Service	M5 (030)	*	Standard	1:1	0.5	0.37	2.94	26.0	750	400	14	150	5.45	48.2
		*B	with brake	1:1			2.94	26.0	750			150	5.45	48.2
		**G5	with reducer	5:1			12.7	112	150			30	23.5	208
		**G10		10:1			26.5	235	75			15	49.0	434
		**G15		15:1			39.2	347	50			10	72.1	638
		**G20		20:1			53	469	37.5			7.5	97.5	863
		**G30		30:1			78.5	695	25			5	144	1278
		**G40		40:1			106	938	18.7			3.7	195	1726
		**G50	with brake and reducer	50:1			132	1168	15			3	243	2150
		**G60		60:1			157	1390	12.5			2.5	289	2557
		**G80		80:1			203	1797	9.3			1.9	374	3306
		**G100		100:1			250	2213	7.5			1.5	463	4093
		**G120		120:1			300	2655	6.2			1.2	555	4912
		**G160		160:1			396	3505	4.6			0.92	733	6484
		**G200		200:1			500	4425	3.7			0.74	925	8187
with reducer Options Parts & Service	M6	*	Standard	1:1	0.75	0.56	4.40	38.9	700	507	18	140	8.1	71.7
		*B	with brake	1:1	0.75	0.56	4.40	38.9	700			140	8.1	71.7
		**G5	with reducer	5:1	0.43	0.32	18.9	167	140			28	34.8	308
		**G10	with reducer	10:1			37.8	335	70			14	69.6	616
		**G15	with brake and reducer	15:1			56.8	502	46.7			9.3	104	919
		**G20		20:1			75.7	670	35			7	138	1226
		**G30		30:1			114	1005	23.3			4.7	208	1839
with brake & reducer Options Parts & Service	M7 (507)	*	Standard	1:1	1	0.75	28	248	320	985	35	60	42	372
		*B	with brake	1:1	1	0.75	28	248	320			60	42	372
		**G3	with reducer	3:1	0.89	0.66	65	575	100			20	116	1030
		**G5	with reducer	5:1			110	974	64			12.8	197	1743
		**G10	with brake and reducer	10:1			212	1876	30			6	379	3359
		**G20		20:1			423	3744	16			3.2	757	6702
		**G40		20:1			850	7523	8			1.6	1522	13466

Model Code				Gear Ratio	Performance at Maximum Speed							Maximum Torque
Series		Type			Power		Torque		Speed	Air Consumption		Speed	Torque
Series		Type			HP	kW	N·m	lb·in	RPM	l/min	CFM	RPM	N·m	lb·in
Flange Options Parts & Service	M9 (403)	*	Standard	1:1	0.35	0.26	1.67	14.8	1500	450	16	300	2.98	26.4
		*B	with brake	1:1	0.35	0.26	1.67	14.8	1500			300	2.98	26.4
		**G5	with reducer with brake and reducer	5:1	0.31	0.23	6.86	60.7	300			60	12.2	108
		**G10		10:1			13.7	121	150			30	24.4	216
		**G15		15:1			20.6	182	100			20	36.7	325
		**G20		20:1			27.5	243	75			15	49.0	433
		**G30		30:1			41.2	365	50			10	73.3	649
Foot Options Parts & Service	M10 (404)	*	Standard	1:1	0.77	0.57	3.63	32.1	1500	950	34	300	6.5	57.5
		*B	with brake	1:1	0.77	0.57	3.63	32.1	1500			300	6.5	57.5
		**G5	with reducer with brake and reducer	5:1	0.69	0.51	15.7	139	300			60	28.1	249
		**G10		10:1			31.4	278	150			30	56.2	497
		**G15		15:1			47.1	417	96			19.2	84.3	746
		**G20		20:1			62.8	556	72			14.4	112	995
		**G30		30:1			94.1	833	48			9.6	168	1491
with brake Options Parts & Service	M11 (405)	*	Standard	1:1	1.36	1.00	6.57	58.1	1450	1750	62	290	11.5	102
		*B	with brake	1:1	1.36	1.00	6.57	58.1	1450			290	11.5	102
		**G5	with reducer with brake and reducer	5:1	1.22	0.91	29.4	260	290			58	51.5	455
		**G10		10:1			58.8	520	145			29	103	911
		**G15		15:1			88.3	782	96			19.2	155	1368
		**G20		20:1			118	1044	72			14.4	207	1828
		**G30		30:1			177	1567	48			9.6	310	2742
with reducer Options Parts & Service	M12 (406)	*	Standard	1:1	3.31	2.47	17.5	155	1350	3700	131	270	31	274
		*B	with brake	1:1	3.31	2.47	17.5	155	1350			270	31	274
		**G5	with reducer with brake and reducer	5:1	3	2.24	78.5	695	270			54	139	1231
		**G10		10:1			157	1390	135			27	278	2462
		**G15		15:1			235	2080	90			18	416	3684
		**G20		20:1			314	2779	67.5			13.5	556	4923
		**G25		25:1			393	3474	54			10.8	695	6151
		**G30		30:1			471	4169	45			9	834	7385
		**G40		40:1			602	5328	33.8			6.8	1066	9438
		**G60		60:1			903	7992	22.5			4.5	1600	14158
		**G100		100:1			1505	13320	13.5			2.7	2666	23596
		**G120		120:1			1806	15984	11.3			2.3	3199	28315
		**G160		160:1			2408	21313	8.44			1.7	4266	37754
		**G200		200:1			3010	26641	6.75			1.4	5332	47192
Flange Options Parts & Service	M13 (506)	*	Standard	1:1	4.2	3.09	21.6	191	1350	4200	148	270	39	345
		*B	with brake	1:1	4.2	3.09	21.6	191	1350			270	39	345
		**G5	with reducer with brake and reducer	5:1	3.8	2.83	98.1	868	270			54	177	1563
		**G10		10:1			196	1735	135			27	353	3123
		**G15		15:1			294	2602	90			18	529	4684
		**G20		20:1			392	3469	67.5			13.5	706	6245
		**G30		30:1			583	5160	45			9	1049	9288
		**G40		40:1			745	6594	33.8			6.8	1341	11869
		**G60		60:1			1115	9865	22.5			4.5	2006	17756
		**G100		100:1			1858	16441	13.5			2.7	3344	29594
		**G120		120:1			2229	19729	11.3			2.3	4012	35513
		**G160		160:1			2972	26306	8.4			1.7	5350	47350
		**G200		200:1			3715	32882	6.8			1.4	6687	59188
Foot Options Parts & Service	M13S (110)	*	Standard	1:1	2.28	1.7	8.10	71.7	2000	1920	68	400	12	106
		*B	with brake	1:1	2.28	1.7	8.10	71.7	2000			400	12	106
		**G3	with reducer with brake and reducer	3:1	2.05	1.53	21.9	194	666			133	32.4	287
		**G5		5:1			36.5	323	400			80	54	478
		**G10		10:1			72.9	645	200			40	108	956
		**G15		15:1			109	968	133			26.6	162	1434
		**G20		20:1			146	1290	100			20	216	1912
		**G30		30:1			219	1936	66			13.2	324	2868
		**G40		40:1			292	2581	50			10	432	3824
		**G60		60:1			413	3656	33			6.6	612	5417
		**G80		80:1			551	4875	25			5	816	7222
Flange, with brake and remote control Valve Options Parts & Service	M14 (210)	*	Standard	1:1	5.36	4	20	177	1900	5880	208	380	34	301
		*B	with brake	1:1	5.36	4	20	177	1900			380	34	301
		**G3	with reducer with brake and reducer	3:1	4.80	3.58	54	478	633			126.7	94.5	836
		**G5		5:1			90	797	380			76	158	1394
		**G10		10:1			180	1593	190			38	315	2788
		**G15		15:1			270	2390	127			25.3	473	4182
		**G20		20:1			360	3186	95			19	630	5576
		**G30		30:1			540	4779	63.3			12.7	945	8364
		**G40		40:1			720	6373	47.5			9.5	1260	11152
		**G60		60:1			1080	9559	31.7			6.3	1890	16728
		**G80		80:1			1440	12745	23.8			4.75	2520	22304
Flange, with hand control valve Options Parts & Service	M15 (310)	*	Standard	1:1	10.1	7.5	42	372	1800	9840	347	360	70	620
		*B	with brake	1:1	10.1	7.5	42	372	1800			360	70	620
		**G3	with reducer with brake and reducer	3:1	9.55	7.12	113	1004	647			129	189	1673
		**G5		5:1			189	1673	358			71.6	315	2788
		**G10		10:1			378	3346	203			40.6	630	5576
		**G15		15:1			567	5018	136			27.2	945	8364
		**G20		20:1			756	6691	86			17.2	1260	11152
		**G30		30:1			1134	10037	57			11.4	1890	16728
		**G40		40:1			1512	13382	45			9	2520	22304
		**G50		50:1			1890	16728	36			7.2	3150	27880
		**G60		60:1			2142	18958	32			6.4	3570	31597
		**G80		80:1			2856	25278	21			4.2	4760	42130
Foot Options Parts & Service	M16 (410)	*	Standard	1:1	18.8	14	85	752	1600	15600	551	320	140	1239
		*B	with brake	1:1	18.8	14	85	752	1600			320	140	1239
		**G3	with reducer with brake and reducer	3:1	13	9.70	227	2009	533			106.7	374	3308
		**G5		5:1			378	3348	320			64	623	5514
		**G10		10:1			757	6696	160			32	1246	11028
		**G15		15:1			1135	10043	107			21.3	1869	16542
		**G20		20:1			1513	13391	80			16	2492	22056
		**G30		30:1			2270	20087	53.3			10.7	3738	33084
		**G40		40:1			3026	26782	40			8	4984	44112
		**G60		60:1			4539	40174	26.7			5.3	7476	66168

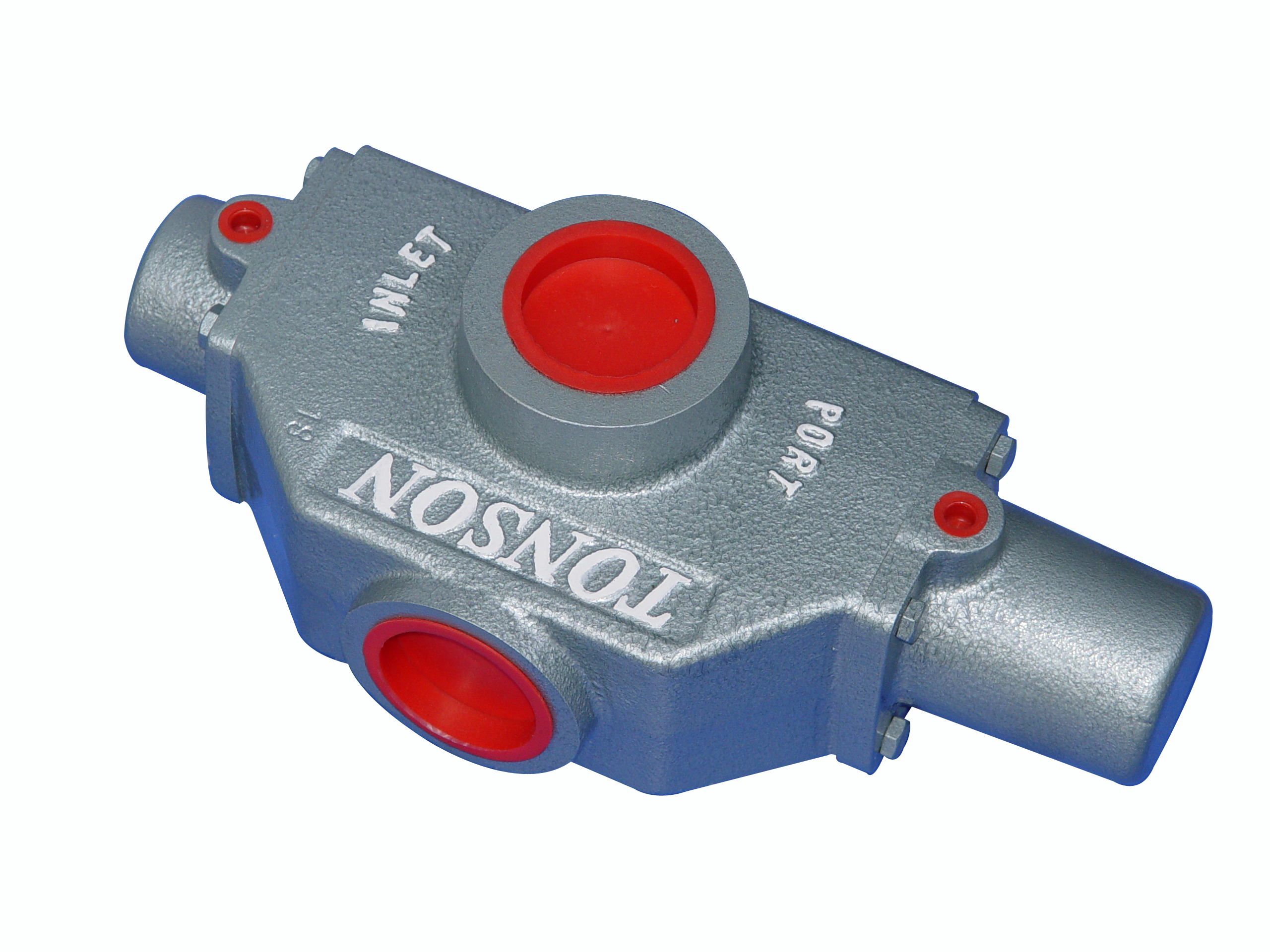

Flange, with brake and remote control valve Options Parts & Service	M17 (510)	*	Standard	1:1	21.7	16.2	140	1239	1100	19810	700	220	235	2080
		*B	with brake	1:1	21.7	16.2	140	1239	1100			220	235	2080
		**G3	with reducer with brake and reducer	3:1	19	14.2	374	3308	367			73.3	627	5553
		**G5		5:1			623	5514	220			44	1046	9256
		**G10		10:1			1246	11028	110			22	2092	18511
		**G20		20:1			2464	21808	55			11	4136	36607
		**G30		30:1			3696	32712	36.7			7.3	6204	54910
		**G40		40:1			4928	43616	27.5			5.5	8272	73213

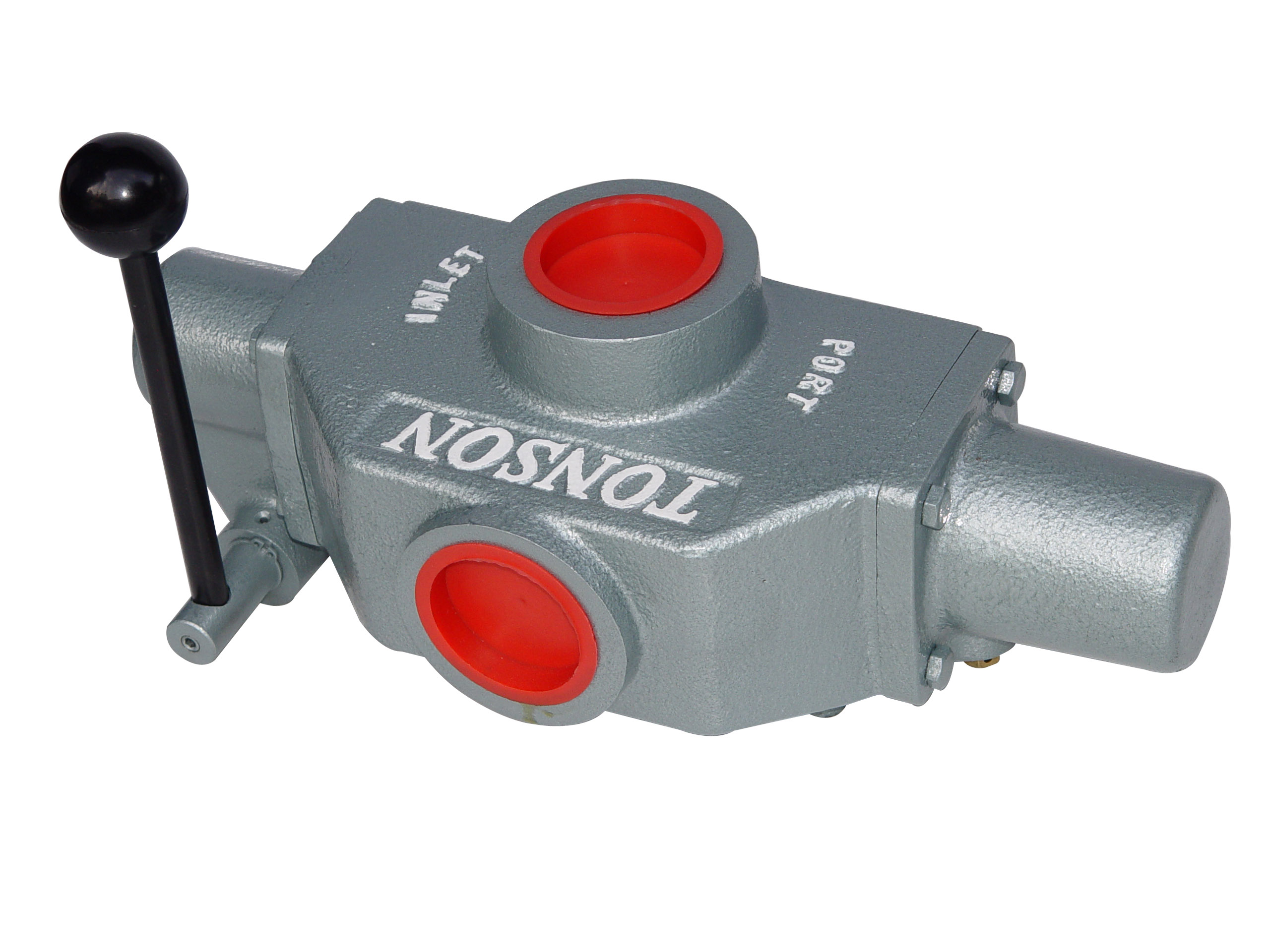

Flange, with brake and hand control valve Options Parts & Service	M18 (610)	*	Standard	1:1	31.2	23.3	155	1372	1500	22500	795	300	235	2080
		*B	with brake	1:1	31.2	23.3	155	1372	1500			300	235	2080
		**G3	with reducer with brake and reducer	3:1	28.7	21.4	414	3663	500			100	627	1722
		**G5		5:1			690	6105	300			60	1046	1935
		**G10		10:1			1380	12210	150			30	2092	3617
		**G20		20:1			2728	24145	75			15	4136	8367
		**G30		30:1			4092	36217	50			10	6204	9612
		**G40		40:1			5456	48290	37.5			7.5	8272	10543

Specifications subject to change without notice

SPECIFICATIONS


M13S	M14	M15


M16	M17	M18

Working Fluid: Compressed Air	Operating Pressure: 6 kg/cm²	Max. Operating Pressure: 7 kg/cm²
Ambient Temperature: -10 ~ +120°C


M13S-F	M13S-L	M13S-I	M13S-N

Model	M13S-F	M13S-L	M13S-I	M13S-N
Mounting	Flange	Foot	IEC (Metric)	NEMA
Power (HP / kW)	1.82/1.36
Torque (N-m / lb-in)	6.5/4.8
Speed (RPM)	2000
Air Consumption (l/min / CFM)	1680/59
Mass (kg / lb)	14/31


M14-F	M14-L	M14-I	M14-N

Model	M14-F	M14-L	M14-I	M14-N
Mounting	Flange	Foot	IEC (Metric)	NEMA
Power (HP / kW)	3.7/2.8
Torque (N-m / lb-in)	14/10.3
Speed (RPM)	1950
Air Consumption (l/min / CFM)	4680/165
Mass (kg / lb)	26/57.2


M15-F	M15-L	M15-I	M15-N

Model	M15-F	M15-L	M15-I	M15-N
Mounting	Flange	Foot	IEC (Metric)	NEMA
Power (HP / kW)	8.3/6.2
Torque (N-m / lb-in)	33/24.3
Speed (RPM)	1800
Air Consumption (l/min / CFM)	7925/280
Mass (kg / lb)	48/105.6


M16-F	M16-L	M16-I	M16-N

Model	M16-F	M16-L	M16-I	M16-N
Mounting	Flange	Foot	IEC (Metric)	NEMA
Power (HP / kW)	14.5/10.8
Torque (N-m / lb-in)	48/65
Speed (RPM)	1600
Air Consumption (l/min / CFM)	12000/424
Mass (kg / lb)	62/136.4


M17-F	M17-L	M17-I	M17-N

Model	M17-F	M17-L	M17-I	M17-N
Mounting	Flange	Foot	IEC (Metric)	NEMA
Power (HP / kW)	21.7/16.2
Torque (N-m / lb-in)	140/103.3
Speed (RPM)	1100
Air Consumption (l/min / CFM)	19810/700
Mass (kg / lb)	125/275


M18-F	M18-L	M18-I	M18-N

Model	M18-F	M18-L	M18-I	M18-N
Mounting	Flange	Foot	IEC (Metric)	NEMA
Power (HP / kW)	31.2/23.2
Torque (N-m / lb-in)	110.6/150
Speed (RPM)	1500
Air Consumption (l/min / CFM)	25500/900
Mass (kg / lb)	125/275

AIR GEARMOTORS
For applications where precise and variable turning power and speed is a requirement. Examples are bolt tensioning equipment or rock drilling rigs, precise lifting, lowering, traversing or turning. Unlike electric gearmotors, no chance of burn-out nor heat buildup
with TONSON Air Motors. Direction of rotation is instantly reversible.
Precise Turning Power, High Torque Capacity. Available in spur gear reducers, planetary gear reducers, and worm gear reducers.

BRAKES
For applications where positive braking is a requirement, a range of caliper brakes is offered.
These are designed to withstand full stall torque of the air motor. The brake consists of two
spring applied shoes pressed against a central hub. The shoes are released by applying air
pressure to the cylinder/piston assembly. The brake torque can be varied by adjustment of
two spring adjusters but it is normally set so that a pilot pressure of 4 bar (60 PSI) will fully release it.

Valve Options (1/2", 3/4", 1", 1 1/4", 1 1/2", 2")
A range of bolt on Hand Control Valves and Remote Control Valves are available for use on all TONSON Piston Air Motors. Designed to completely eliminate all static friction, thereby reducing hysteresis effect and offering a very high degree of sensitive speed control. Suitable for applications where forward and reverse hand control is required, with spring centre to neutral position by a lever mechanism or controlled by air pilot signal..
Two control styles are manufactured:
i) Equal power and speed in both directions
ii) Biased to give a degree of control for hoisting applications.


Hand Control Valve	Custom Hand Control Valve	Remote Control Valve

One pilot port, 1/4" on each end. Caps may be positioned with port at top, bottom or either side. The pilot pressure range is between 1.4 bar (20 psi) and 4.8 bar (70 psi), incresed pilot pressure gives increased speed.

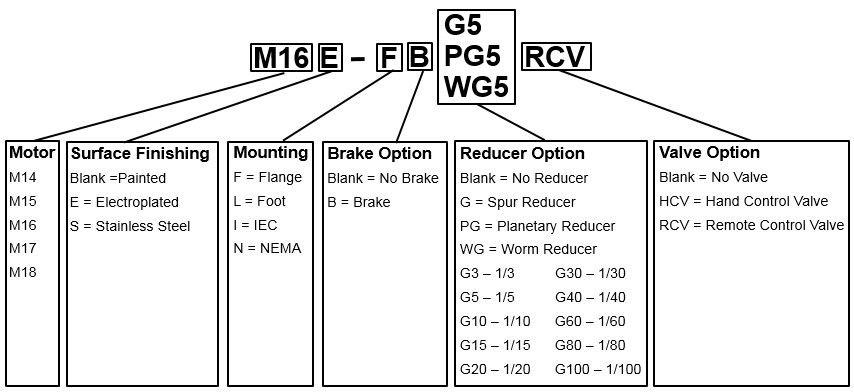

Ordering Code

HEADQUARTER
TONSON AIR MOTORS MFG. CORP.
22 Shu-Yi 1st Lane, Taichung 40256, TAIWAN
TEL: +886 4 2261 1047 Mobile: +886 928 989238 FAX: +886 4 2261 1678
www.tonson-motor.com		sales@tonson-motor.com

GPS: 24°07'12.38" N 120°39'25.68" E

CHINA
NeuMek (Shanghai) Corporation
59 Xu Wang Rd., Xu Jing Town Qing Pu District, Shanghai 201702, CHINA
TEL:+86 21 2281 8889 +86 21 2281 7669 FAX:+86 21 3987 9136
Mobile : +86-13917636393 / 13818-336699
www.neumek.com		sales@neumek.com

Guang Dong, CHINA

29 San Heng Rd., Ci Bian Xiao Qu, Hou Sa Rd.
Hou Jie Town, Dong Guan 52300, CHINA

TEL:+86-(0) 769 8122 0478 FAX:+86-(0) 769 8122 0479

Mobile : +86-13560848899

Fu Jian , CHINA

12 Building A, Gao Pu Mao Yi Shang Cheng, Xing Lin East Road,
Ji Mei District, Xia Men City, Fu Jian Province, CHINA

TEL:+86-(0) 592 625 9768 FAX:+86-(0) 592 625 9769

Mobile : +86-13779945836

United States

AIR MOTORS TONSON (USA)

sales@tonson-motor.com

AUSTRALIA

TONSON AUSTRALIA Pty. Ltd.

Factory 19/ 5 Lyn Parade

Prestons NSW Sydney, AUSTRALIA

TEL: +61 (0)2 9607 4100 FAX: +61 (0)2 9607 4200

Mobile: +61 (0)411 729 849

sales@tonson-motor.com
