Drum Deheader, Non sparking drum deheader, non sparking drum plug wrench,

Drum Accessories

Non Spark Drum Opener

Make salvage drum reusable for storage container or waste bin with
TONSON Drum Deheader. EASILY, SAFELY & SPEEDILY

Avoid injury and fire hazard that could be caused by torch cutting.
Drum that contains inflammable material after emptied the drum there is still gas left over and might be easily ignited by sparks when opening. New designed "Non- Spark Drum opener" cuts drum top off in minutes, can operate by one person, leaves a clean edge all around the drum so container can be reused. Suitable for most standard industrial steel drums.

Cuts the drum top off for most standard 20 to 55 gallon steel drums.

Wider cut, Clean edge. About 28 cuts to top off the drum.

WARNING
Open 2" and 3/4" drum plug for ventilation prior to cutting the drum to avoid residual gas / fumes causing explosion.
For safety, always refer to MSDS for drum contents.

Drum Deheader / Opener

NS-200 Non Spark Drum Opener
Drum that contains inflammable material after emptied the drum there is still gas left over and might be easily ignited by sparks when opening. New designed "Non- Spark Drum Opener" cuts drum top off in minutes, can operate by one person, leaves a clean edge all around the drum so container can be reused. Suitable for most standard industrial steel drums.

NS-200X 100% Non Spark Drum Opener
Cuts the drum top off for most standard 20 to 55 gallon steel drums.
Wider Cut, Clean edge. About 28 cuts to top off the drum.

Drum Deheader	(for cutting Steel and stainless steel drum)			WARNING Open 2” and 3/4” drum plug for ventilation prior to cutting the drum to avoid residual gas / fumes causing explosion. For safety, always refer to MSDS for drum contents.
Drum Deheader	Steel, Drum Opener / Drum Deheader	Non-Spark Drum Opener, (Non-sparking Blade)	100% Non-Spark Drum Opener (completely non-sparking)	Wider cut, Clean edge. About 28 cuts to top off the drum.
Model	NS-200-S	NS-200	NS-200-X
Body Material	Steel	Steel	Non Ferrous Alloys
Blade Material	Hardened Steel	Non Ferrous Alloys	Non Ferrous Alloys
Weight (kg)	3	3	3 б@
Length	47	47	50 б@

Replacement Drum Deheader Blade
Model	P13-NS200S	P13-NS200	P13-NS200X
Material	Hardened Steel	Non Ferrous Alloys
Weight (kg)	0.2	0.3	0.3

Drum cap opener / Drum Opener Wrench	Open plastic pails and drums lid Open 2би Drum Plug Open 3/4би Drum Plug		Item: Pail Lid Opener (High Leverage Rigid I-beam handle) Description: For use with Non-UN 5 gal. plastic pails eliminating cover distortion By pulling down over the center of the cover to lift cover SPEC Length: 16", Width: 5", Thickness" 1"	Non-Sparking
Drum cap opener / Drum Opener Wrench	For 5 & 50 gallons drum	For 5 & 50 gallons drum	For 5 gallons pail	For 5 gallons drum
Model	F5-V	F5-N	F5	F5-X
Material	Aluminium	Nylon	Cast Iron	Copper
Weight(kg)	0.3	0.1	1	1
Length(cm)	22	23	23	23

Drum cap opener / Drum Opener Wrench		Non Sparking
Drum cap opener / Drum Opener Wrench	For 5 gallons drum	For 5 gallons drum	For 5 gallons drum
Model	F5-R	F5-RX	F5-G
Material	Iron	Copper	Iron
Weight(kg)	11	б@0.9	0.5
Length(cm)	37	б@36	33

Drum cap opener / Drum Opener Wrench	4 function in 1	4 function in 1	Non-Sparking 4 function in 1		Non-Sparking
					Non-Sparking

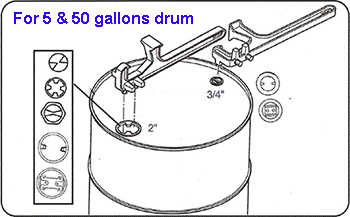

	For 5 & 50 gallons drum	For 5 & 50 gallons drum	For 5 & 50 gallons drum	For 5 gallons drum	For 5 gallons drum
Model	F5-4L	F5-4V	F5-4X	F20	F20-X
Material	Cast Iron	Aluminium	Copper	Iron	Copper
Weight(kg)	1.3	0.5	1.3	0.6	0.7
Length(cm)	38	38	38	36	36


Drum cap opener / Drum Opener Wrench		Non Sparking		Non-Sparking


	For 50 gallons drum	For 50 gallons drum	For 50 gallons drum	For 50 gallons drum	For 50 gallons drum
Model	F20-R	F20-RX	F20-B	F20-BX	F20-C
Material	Iron	Copper	Iron	Copper	Iron
Weight	0.5	0.6	1.2	1.5	0.5
Length	39	39	39	39	39

Drum cap opener / Drum Opener Wrench		Non Sparking	Universal Drum Opener Wrench	Non-Sparking
		Non Sparking
	For 50 gallons drum	For 50 gallons drum	For 50 gallons drum	For 50 gallons drum	Stainless steel hexagon drum cap opener
Model	F20-A	F20-AX	F50	F50-X	F50-A
Material	Iron	Copper	Cast Iron	Copper	Iron
Weight	б@	б@	2б@	2	б@
Length	б@	б@	б@	б@	б@

Valve

T-BV suitable for solvent
T-CV-S, T-CV & T-CV-X suitable for high viscosity 2" outlet for solvent

Valve	3 /4" 2"	2" into 3/8" 2" into 1"				Seal Material Brass
	3 /4" 2"	2" into 3/8" 2" into 1"		Rigid Gate Valve suitable for high viscous fluid / solvents for use with metal or plastic horizontal drums
	Ball Valve	Ball Valve	Gate Valve	Gate Valve	Gate Valve	Gate Valve
Model	T-BV	T-BV	T-BO	T-CV-S	T-CV	T-CV-X
Material	SS / Cast Iron	SS / Cast Iron	Cast Iron	SS	Cast Iron	Plated Cast Iron
Outlet	3/4", 1", 1¹/4", 1¹/2", 2"			2"	2"	2"
Weight	1.4	2	3	2.5	2.5	2.5
Dimension	22	22	22	28	28	28

Drum Stand / Drum Frame

Easy Lifting Frame	Suitable: 200 Liter drum Drum stand with handle for easy handling by one person	Suitable: 200 Liter drum	Suitable: 20 Liter can Prevent accidents and spilling mess
Easy Lifting Frame		Suitable: 200 Liter drum	Drum Cradle / Can Tilter
Model	T-FV-1	T-FV	T-5D
Max. Load	б@	б@	б@
Weight	12.5 kg	12 kg	6.5 kg
Dimension	б@	б@	б@

Dolly


Drum Dolly	б@	б@





	Dolly (50 Gallons)	Dolly (25 Gallons)
Model	DD-1	DD-2
Max. Load	б@	б@
Weight	б@	б@
Dimension	б@	б@


Drum Dolly	б@	б@





	Dolly (50 Gallons)	Dolly (25 Gallons)
Model	DC-1	DC-2
Max. Load	б@	б@
Weight	б@	б@
Dimension	б@	б@

Roller


Roller		б@





	Roller ( for 1 gallon )	Roller ( for 5 gallons )	Roller ( for 12.5 gallons )
Model	TH-4	TH-20	TH-50
Weight	б@	32 kgб@	б@
Dimension	б@	86 x 47 x 64 cm	б@

Vibrator

Vibrator

Option for stand

Pneumatic Paint Shaker

Electrica Paint Shaker

Vibrator (for 1 gallon)

Vibrator (for 5 gallons)

Model

SS-989

SS-986

SS-986-E

Weight

9.5 kg

60 kg

Dimension

б@

F50 Multi-Purpose Drum Plug Wrench
F50-X Non Sparking Multi-Purpose Drum Plug Wrench

Weight:
Suitable:5.0 gallon tanks

F5 Pail Opener
(can Reclose pail)

Weight:
Suitable: plastic pails tubes

F5-B Fulcrum Pail Opener

F20 200 Lite Drum Opener

Weight:
Suitable: 200 Liter drums

F10 Speed Lifting Hook

Weight:
Capacity:200lb

	T-CV Gate Valve Weight: Suitable: high viscosity 2" outlet for solvent
	T-BV 2" - 1 " Ball Valve Weight: Suitable: for solvent
	T-5D 20 Liter Easy Lifting Frame Weight: Suitable: 20 Liter can
	T-FV T-FV-1(For one person) 200 Liter Easy Lilting Frame Weight: Suitable: 200 Liter drum

NS-200 Non Spark Drum Opener
Drum that contains inflammable material
after emptied the drum there is still gas
left over and might be easily ignited by
sparks when opening. New designed
"Non- Spark Drum Opener" cuts drum top
off in minutes, can operate by one person,
leaves a clean edge all around the drum so
container can be reused. Suitable for most
standard industrial steel drums.

NS-200X 100% Non Spark Drum Opener

Cuts the drum top off for most standard 20 to 55 gallon steel drums.

Wider Cut, Clean edge. About 28 cuts to top off the drum.
